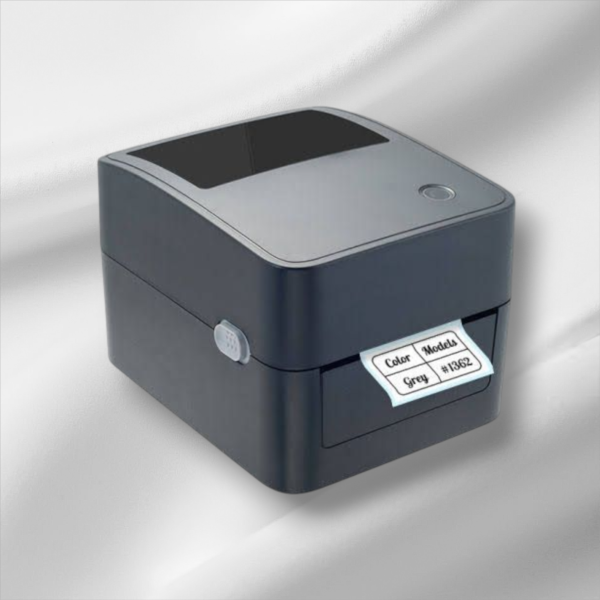

XPrinter XP-410B

performance and ease of use.

XPrinter XP-410B Label Printer Product Specification:

• Model: XP-410B
• Printing Features
  • Resolution: 203 DPI
  • Printing method: Direct Thermal
  • Max. print speed: 152 mm (6″) / s Max.
  • Max. print width: 104 mm (4.25”)
  • Max. print length: 1778 mm(70”)
• Media
  • Media type: Continuous, gap, black mark, fan-fold and punched hole
  • Media width: 25.4 mm ~ 118 mm (1.0″-4.6″)
  • Media thickness: 0.06~0.25 mm (2.36~9.8mil)
  • Media core diameter: 25.4 ~ 76.2 mm (1 “~ 3 “)
  • Label length: 10 mm ~1778 mm
• Performance Features
  • Processor: 32-bit CPU
  • Memory: 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB
  • Interface:
    • Standard version: USB
    • Optional: LAN/WIFI/Bluetooth/TF card
  • Sensors:
    • Gap sensor
    • Cover opening sensor
    • Black mark sensor
• XPrinter Fonts/Graphics/Symbologies
  • Internal fonts: 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from the software.
  • 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
  • 2D bar code: CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar)
• Rotation:
  • 0°、90°、180°、270°
  • Emulaion: TSPL、EPL、ZPL、DPL
• Physical Features
  • Dimension: 215 mm (L) x 178 mm (W) x 149.5 mm (H)
  • Weight: 1.32 kg
• Reliability
  • Warranty: One year
  • Print head life: 30 km
• Software
  • Driver: Windows/ Linux/ Mac
  • SDK: Windows/ Android/ iOS
• Power supply
  • Input: AC 100-240V
  • Output: DC 24V-2.5A
• Options
  • Factory Options:
    • Lan
    • Bluetooth
    • WIFI
    • TF card
    • RTC
    • Peeling machine
    • Cutter
  • Dealer Options:
    • External paper roll holder
    • Paper roll spindle
    • Extension board for external paper roll holder
• Environmental Conditions
  • Operation environment: 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing
  • Storage environment -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
